Databricks Exports

Introduction

Databricks is a platform that allows organizations to store, analyze, and process large volumes of structured and semi-structured data in a highly scalable and efficient manner. With its unique architecture, organizations can consolidate their data, perform quick analytics, and gain valuable data-driven insights accessible to all users.

MoEngage <> Databricks

With this integration, you can export data from campaign interaction events to your Databricks tables.

Integration

• Ensure you have a Databricks account with relevant permissions to create/edit Databricks instances, roles, and policies. It is optional to create a new user; you must have access to create a new user in your Databricks database.
• If your system requires IP whitelisting, you must whitelist MoEngage IPs. For more information, refer here.
• Ensure you have a Databricks Connection on the App marketplace.
• Exports to Databricks are part of the Streams add-on. Contact your dedicated MoEngage CSM (customer success manager) to enable them for your account.

If not done already, you need to set up a MoEngage <> Databricks integration for your account. For more information, refer to the Databricks Integration help doc.

Export Events from MoEngage to Databricks

Step 1: Ensure Your User’s Assigned Role Has Required Permissions

MoEngage will need WRITE access to your Databricks database to store data. You have the option to grant these permissions to an existing database user or create a new dedicated database user specifically for MoEngage.

Use the following code to configure write access for data storage in your Databricks database:

GRANT USE CATALOG ON CATALOG `<CATALOG_NAME>` TO `<EMAIL_ID_OF_THE_USER>`;
GRANT USE SCHEMA, CREATE TABLE ON SCHEMA `<CATALOG_NAME>`.`<SCHEMA_NAME>` TO `<EMAIL_ID_OF_THE_USER>`;

Remember to change the following values:

• <CATALOG_NAME> - The name of your catalog.
• <SCHEMA_NAME> - The name of your database or schema.
• <EMAIL_ID_OF_THE_USER> - The email ID of the user who created the token.

Step 2: Add a New Databricks Export on the MoEngage App Marketplace

• For the full list of events and attributes, refer to the Data Exports Glossary.
• The event_time of the exported events will always be in UTC.
• As of now, we do not support exporting Historical Data from MoEngage

To add a new Databricks export, perform the following steps:

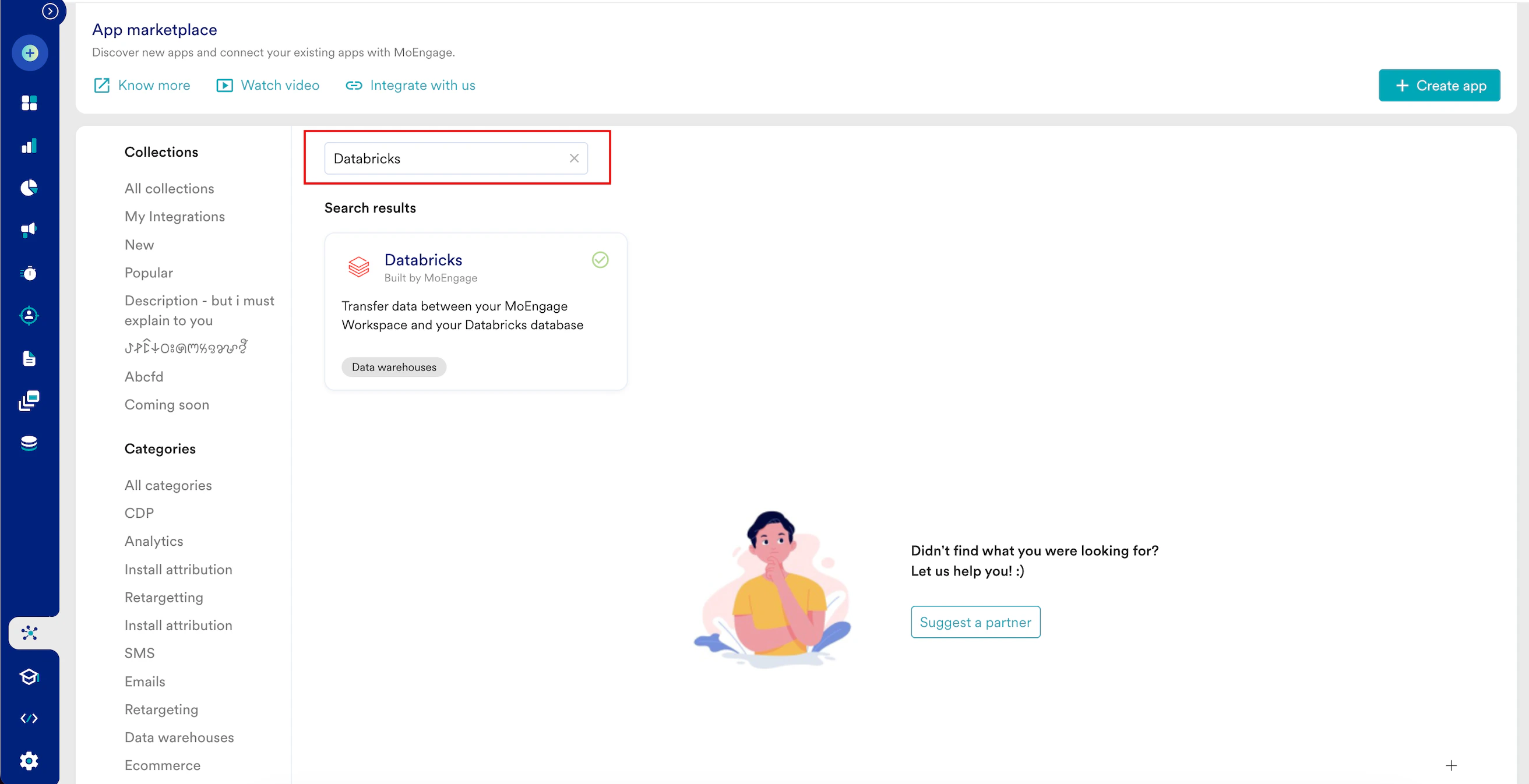

1. On the left navigation menu in the MoEngage dashboard, click App marketplace.
2. On the App Marketplace page, search for Databricks.

3. Click the Databricks tile.
4. On the Databricks page, go to the Integrate tab and click +Add Export.

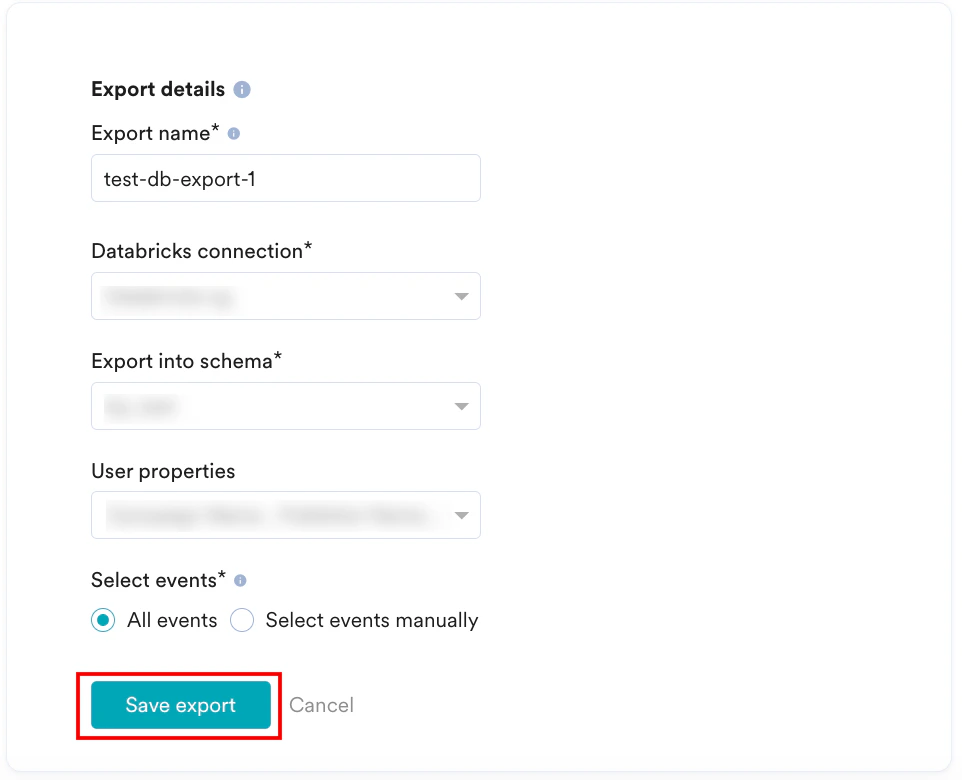

5. Enter the following details:

   Field	Required	Description
   Export name	Yes	Type a name for the Databricks export.
   Databricks connection	Yes	Select your Databricks connection.
   Export into schema	Yes	Select the schema that MoEngage uses to create new tables and export your events into.
   User properties	Optional	Select the user properties (user properties and device properties) you want to export with your events.
   Select events	Yes	Select the events you want to export to Databricks. You can choose to export all events, including existing and new ones coming into MoEngage, or manually select specific events to export.

5. Click Save export.

MoEngage starts dumping (appending) events to the newly created table every hour.

Export Process and Frequency

After you save the export, MoEngage creates a destination table in your schema. New event data is then appended to the existing table at hourly intervals:

• Initial action: MoEngage creates the table when the first export is triggered.
• Recurring action: MoEngage adds (appends) data to the same table every hour.

Sample Table Structure

MoEngage creates a single table in your schema using the following format:
moe_events_<table_creation_timestamp.

Note: This table is created after per connection. All hourly exports and different event types configured under this connection are consolidated and appended to this specific table.

The overall structure of the table remains fixed for all event types. Any new user property or event attribute that is exported will be included in the user_attributes or event_attributes column, respectively. All events are consolidated in a single table containing necessary information, such as event names and event times, for easy analysis:

Field	Type	NULL
app_name	VARCHAR	NOT NULL
event_name	VARCHAR	NOT NULL
event_code	VARCHAR	NOT NULL
event_uuid	VARCHAR	NOT NULL
event_time	TIMESTAMP	NOT NULL
event_type	VARCHAR	NOT NULL
event_source	VARCHAR	NOT NULL
uid	VARCHAR	NULL
user_attributes_moengage_user_id	VARCHAR	NULL
device_attributes_moengage_device_id	VARCHAR	NULL
push_id	VARCHAR	NULL
email_address	VARCHAR	NULL
mobile_number	VARCHAR	NULL
event_attributes_app_version	VARCHAR	NULL
event_attributes_sdk_version	VARCHAR	NULL
event_attributes_platform	VARCHAR	NULL
event_attributes_campaign_id	VARCHAR	NULL
event_attributes_campaign_name	VARCHAR	NULL
event_attributes_campaign_type	VARCHAR	NULL
event_attributes_campaign_channel	VARCHAR	NULL
event_attributes_readable_campaign_id	VARCHAR	NULL
event_attributes_parent_campaign_id	VARCHAR	NULL
event_attributes_parent_flow_id	VARCHAR	NULL
event_attributes_parent_flow_name	VARCHAR	NULL
event_attributes_variation_id	VARCHAR	NULL
event_attributes_locale_id	VARCHAR	NULL
event_attributes_locale_name	VARCHAR	NULL
event_attributes_url	VARCHAR	NULL
event_attributes_timestamp	TIMESTAMP	NULL
event_attributes_first_session	BOOLEAN	NULL
event_attributes_logged_in_status	VARCHAR	NULL
event_attributes	VARIANT	NULL
user_attributes	VARIANT	NULL
device_attributes	VARIANT	NULL

Frequently Asked Questions

How soon will I start getting the data?

It typically takes up to 30 minutes for the automated data exports to be set up for your account and for you to start seeing data there.

Can I export additional events at a later time?

Yes, if you need to export new events at a later time, you can always edit your configuration on the App Marketplace and get the new events added to your exports.

Can I export historical data using Automated Data Exports?

As of now, you cannot export historical data using Automated Data Exports. Once configured, you will start seeing data for each event from the time you enabled your exports.

Is there any pricing involved for Automated Data Exports?

If your billing plan does not cover this already and you need to get this enabled at a later time, you would need to work with your Customer Success Manager to get this included in your billing plan. Based on the amount of data that MoEngage will place in your Data warehouse/Partner/API on a monthly basis, this could lead to additional charges.

Does Data Exports guarantee the latest user attributes?

No, Data Exports is primarily built to export your Events in near real-time and user attributes in MoEngage are updated asynchronously so it is currently not possible to guarantee the latest values of user attributes in the exports.
